ROOF INSULATION FOIL

Back

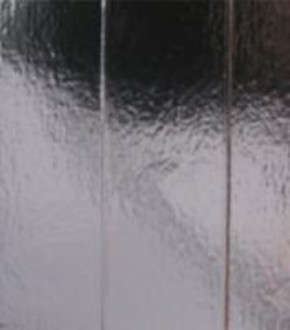

Product Name:CAMEL Double-Sided Metalised Paper Foil - 50M
Product Code:C228-50
Availability:Yes

Product description:

C228-50 CAMEL Double-Sided Metalised Paper Foil
Size: 1.22m x 50m

Physical Properties
PropertyTest Method UnitResults
GrammageBS EN 965gsm130 ± 10
Tensile
MD
CD		ASTM D 828N/25mm
125 ± 10
80 ± 10
Initial Tear Resistence
MD
CD		ASTM D 1004N
25 ± 10
20 ± 10
Emittance of Surface
Aluminium Foil
Metalized Film		ASTM E 408 %
3 - 5
50 ± 5


Product Description

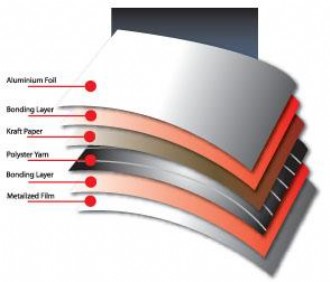

CAMEL C228am is a 6 layer radiant barrier, using 1 layer of highly reflective metalized film at one side and 1 layer of pure aluminum foil at the other side bonded to 1 internal layer of kraft paper and reinforced with polyester yarn.

Suggested Application
Residential Concrete / Clay Tiles Roofing, Industrial / Commercial Metal Roofing and Poultry Houses Metal Roofing.

C228-50-CAMEL Double-Sided Metalised Paper Foil - 50M
