ROOF INSULATION FOIL

Back

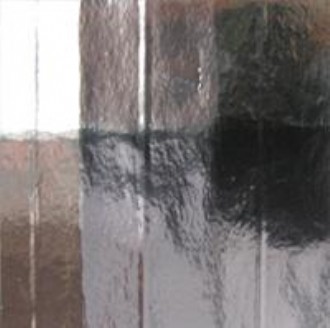

Product Name:FUJISANKO Single-Sided Metalised Paper Foil - 40m
Product Code:F-126
Availability:Yes

Product description:

F-126 Fujisanko Single-Sided Metalised Paper Foil
Size: 1.22m x 40m

The CaThe Camel Paper Foil range is mainly used as a radiant insulation barrier under tiled or metal roofing and also widely used in the Air-con (HVAC) industry.
under tiled or metal roofing and also widely used in the Air-con (HVAC) industry.
Physical Properties
PropertyTest Method UnitResults
GrammageBS EN 965 gsm105 ± 10
Tensile
MD
CD
ASTM D 828N/25mm
100 ± 10
80 ± 5
Initial Tear Resistence
MD
CD
ASTM D 1004N
30 ± 10
20 ± 10
Emittance of Surface
Metalized Film
ASTM E 408 %
50 ± 5

Product Description

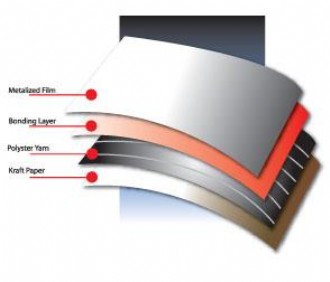

CAMEL C118m is a 4 layer radiant barrier, using 1 layer of highly reflective metalized film bonded to 1 layer kraft paper and reinforced with polyester yarn.

Suggested Application
Residential Concrete / Clay Tiles Roofing, Industrial / Commercial Metal Roofing and Poultry Houses Metal Roofing.




F-126-FUJISANKO Single-Sided Metalised Paper Foil - 40m
